Tuff-Boy Series Leveling Scrapers
Tuff-Boy Leveling Scrapers are designed for light duty scraping jobs. Tuff-Boy leveling scrapers are available in 5 and 6 foot widths. They come standard with a scarifier bar, jack assembly, and single lead hydraulics. The moldboard is 3/8” thick and the Tuff-Boy uses standard 6” Motor Grader blades.
Tuff-Boy Series Specifications
| Models | Tuff Boy 5 | Tuff Boy 6 |
| Specifications | ||
| Capacity (cu. ft.) | 14.2 | 17.04 |
| Tractor HP | 20 min to 60 max HP | 20 min to 60 max HP |
| Tractor Compatibility | Draw Bar and Single Hydraulic | Draw Bar and Single Hydraulic |
| Working Width | 5 FT | 6 FT |
| Machine Width | 5 FT 1 IN | 6 FT 1 IN |
| Machine Length | 8 FT 2 IN | 8 FT 2 IN |
| Machine Height | 29.5 IN | 29.5 IN |
| Operating Weight | 612 lbs | 735 lbs |
| Hitch Type | Drawn | Drawn |
| Wheels | 6 IN Wide x 10 IN Length | 6 IN Wide x 10 IN Length |
| Tires | 20.5 x 8 x 10 With 5 bolt pattern | 20.5 x 8 x 10 With 5 bolt pattern |
| Axles | 1 1/4 Dia x 10 IN long | 1 1/4 Dia x 10 IN long |
| Tongue Dimensions | 3 x 4 x .250 x 41 IN Long | 3 x 4 x .250 x 41 IN Long |
| Cutting Edge | 6 IN Tall, 5/8 Thick Grading Blade | 6 IN Tall, 5/8 Thick Grading Blade |
| Moldboard Thickness | 8-Mar | 8-Mar |
| Scarifier Shanks | 6 - Standard | 6 Standard |
| Replaceable Shanks | Yes | Yes |
| Scarifier Beam Size | 4 x 4 x .250 | 4 x 4 x .250 |
| End Plate Thickness | 3/8 IN | 3/8 IN |
| Hydraulic Cylinders | Standard | Standard |
| Hydraulic Cylinders (#) | 1 | 1 |
| Cylinder Size | 3 IN Bore | 3 IN Bore |
| Cylinder Rod Size | 1 3/8 IN | 1 3/8 IN |
| Cylinder Stroke Length | 8 IN | 8 IN |
| SCVs Required | 1 | 1 |
| Safety Chains | Yes - Required | Yes - Required |
| Lights | - | - |
| Weight Rack | - | - |
| Duty | Standard | Standard |
| Assembly/Set-Up Time | 5 Minutes | 5 Minutes |
| Shipping Weight | 612lbs | 735lbs |
| Shipping Configuration | Packaged 1 Per Crate | Packaged 1 Per Crate |
| Warranty | 1 Year Warranty | 1 Year Warranty |
| Paint Color | Construction Yellow | Construction Yellow |
| Supplier Model | Tuff-Boy - 5' | Tuff-Boy - 6' |

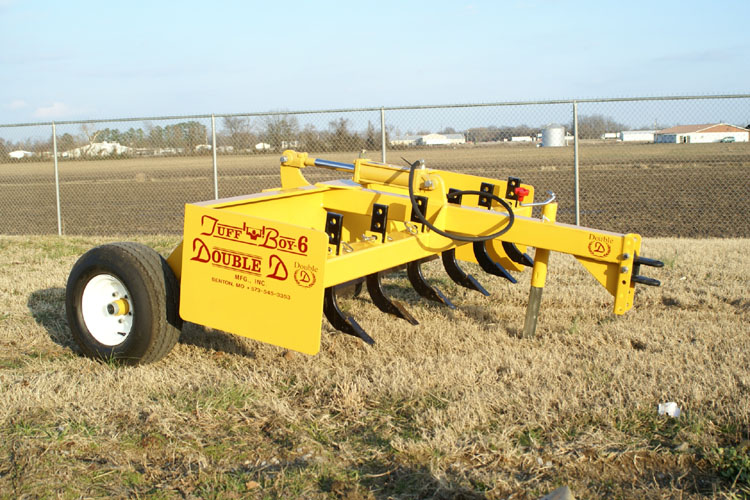

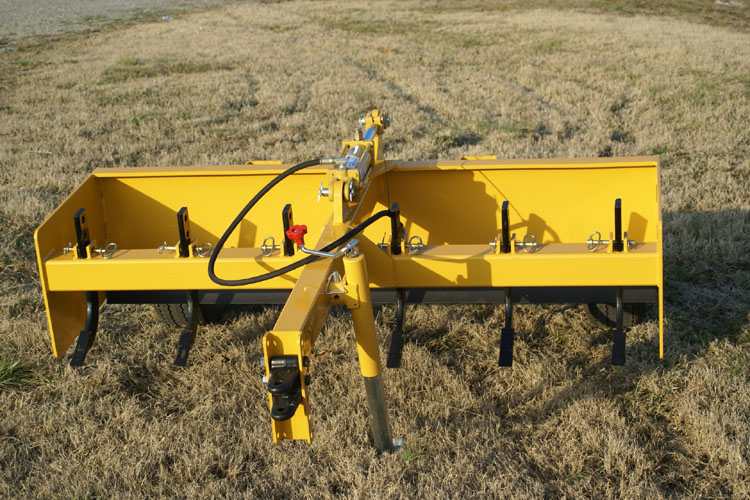

TUFF BOY SERIES PHOTO GALLERY
(Click on the photos to view a larger photo)
